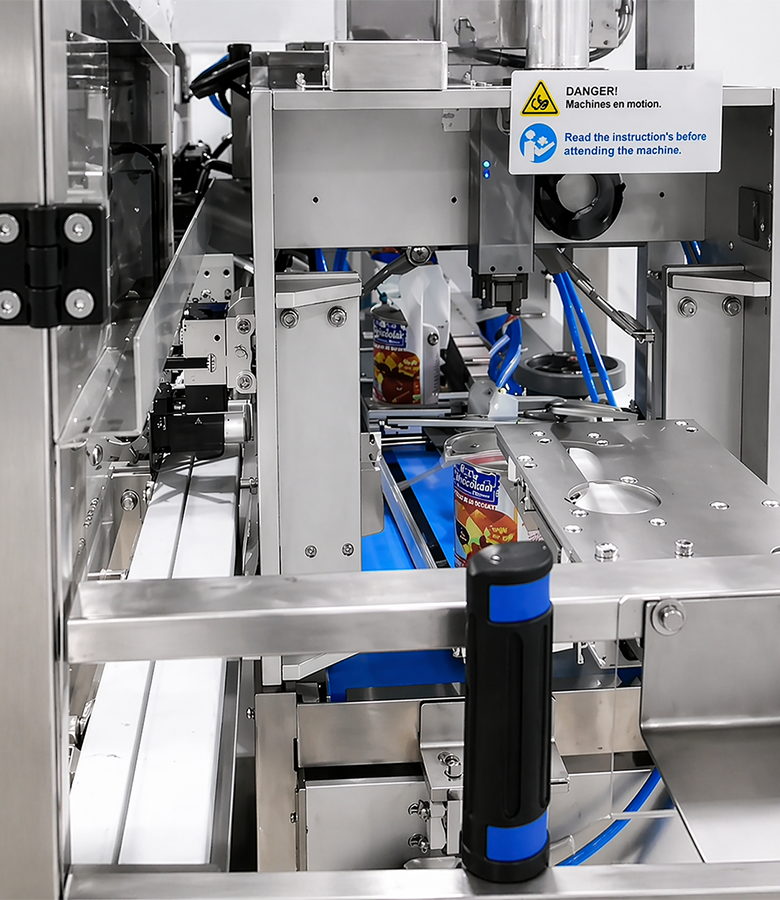

Automatic Horizontal Bagging Machine
The APTD-200 is a fully automatic horizontal bagging machine designed for packaging all kinds of solid products into premade bags. It is particularly well-suited for side-gusset bags used in frozen food, bakery items, and frozen burgers secured with a clip. The machine handles the complete process automatically: bag feeding, opening, product pushing, sealing, and outfeed. Built from SS304 stainless steel and driven by a servo motor control system, the APTD-200 features a user-friendly HMI, an indexing product infeed conveyor for line integration, and an automatic “no-bag, no-product” safety system, making it an ideal solution for hygienic, high-efficiency bagging.
20–35
pcs/min
L170–300 × W130–190mm
Bag Size Range
7
KW
SS304
Food-Grade Construction
Engineering Advantages
Built for Demanding Production Lines
Fully Automatic End to End Operation
Automatically handles bag feeding, opening, product pushing, sealing, and outfeed in one continuous process eliminating manual intervention and maximizing production efficiency.
Servo Motor Control System
Servo-driven motion control with user-friendly HMI operation panel delivering precise, consistent bag handling and easy parameter adjustment without specialist training.
No Bag No Product Safety System
Automatic photocell detection stops product feeding when no bag is present or when bag opening fails — preventing product waste and protecting packaging film at all times.
Indexing Infeed Conveyor
Equipped with an indexing product feeding conveyor that can connect directly to automatic production lines enabling seamless integration and high-efficiency automated production.
SS304 Stainless Steel Construction
Full machine construction in SS304 stainless steel meeting food industry hygiene standards and ensuring easy cleaning and long-term durability in demanding production environments
Compact & Uniform Design
Compact footprint with uniform, well-organized design minimising floor space requirements and simplifying integration into existing production facilities.
Industries & Products
Suitable Appplications
Technical Data
Full Specification
Every detail engineered for precision and consistent production output.
| Parameter | Value |
| Model No. | APTD-200 |
| Wrapping Speed (with sealing) | 20–30 bags/min |
| Wrapping Speed (without sealing) | 30–35 bags/min |
| Bag Length | 170–300mm |
| Bag Width | 130–190mm |
| Bag Height | 0–50mm |
| Power (with sealing) | 7 KW |
| Power (without sealing) | 5.8 KW |
| Voltage | 220V / 1Ph / 50Hz |
| Compressed Air | 0.6–0.8 MPa |
| Bag Materials | OPP/CPP/PE laminated film, 45–60μm |
| Machine Weight | Approx. 500 kg |
| Overall Dimensions | 3015 × 3530 × 1513mm |
