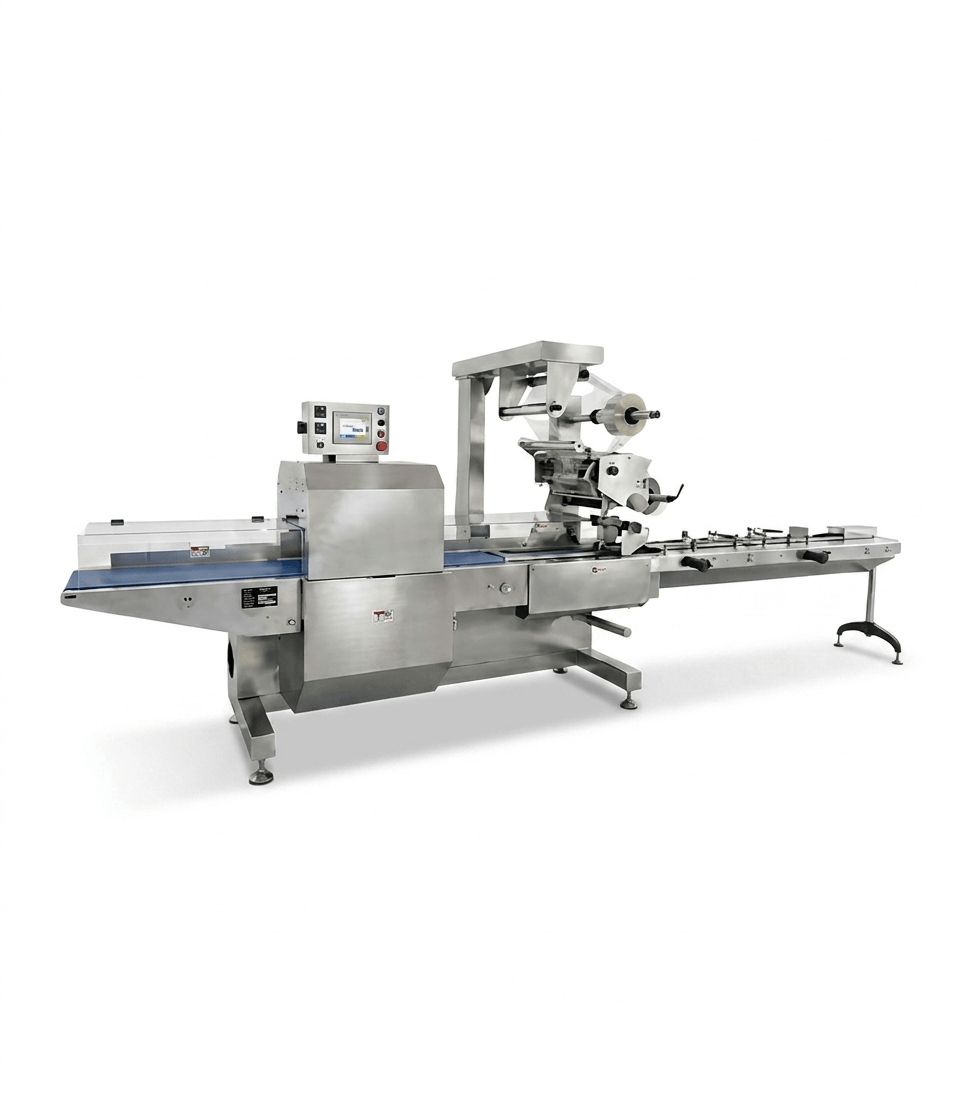

Box Motion Top Film Flow Wrapper Machine
60
pcs/min
100–600mm
Bag Length Range
Max. 700mm
Film Width
5 Servo Motors
Drive System
Engineering Advantages
Built for Demanding Production Lines

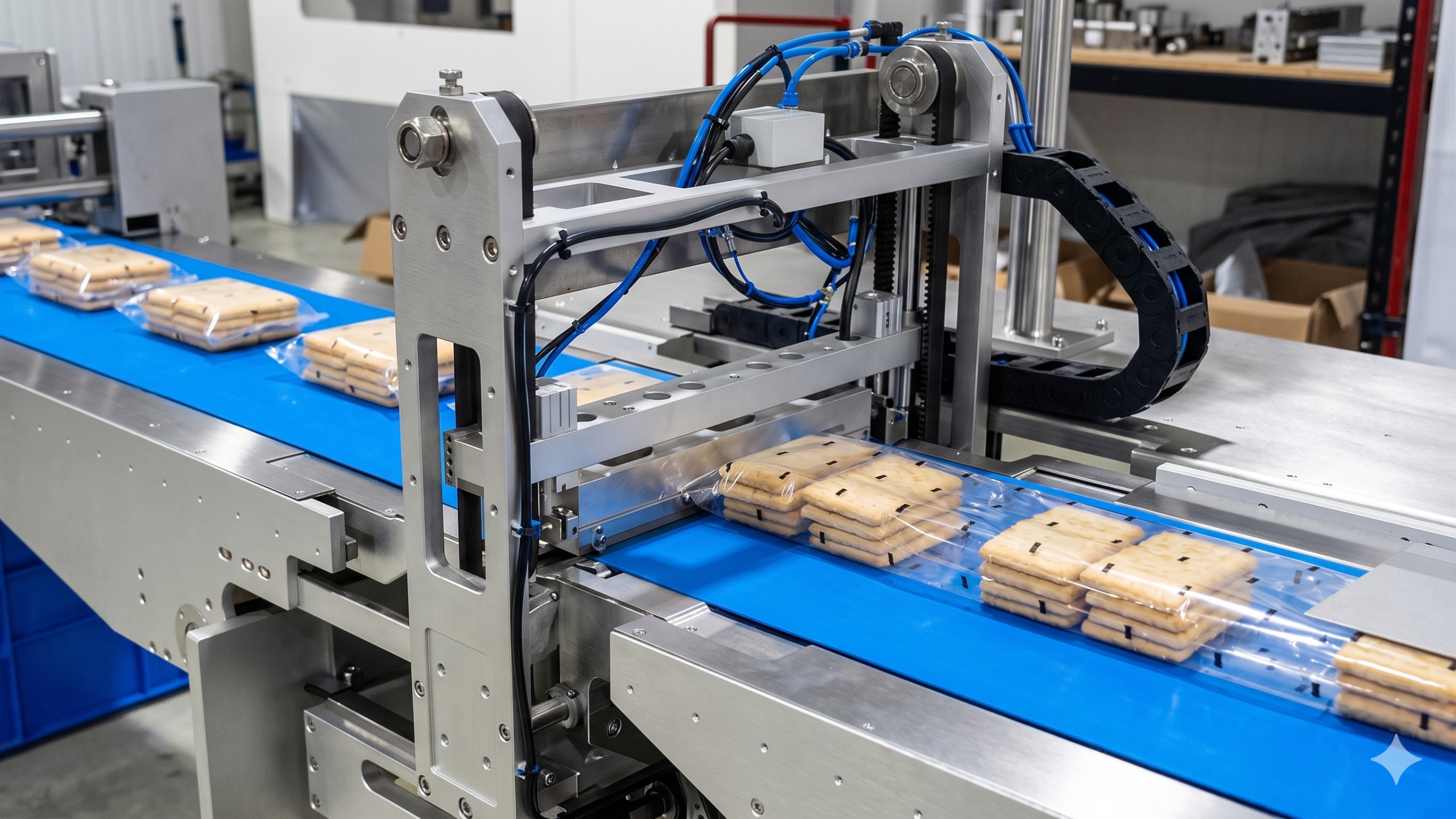

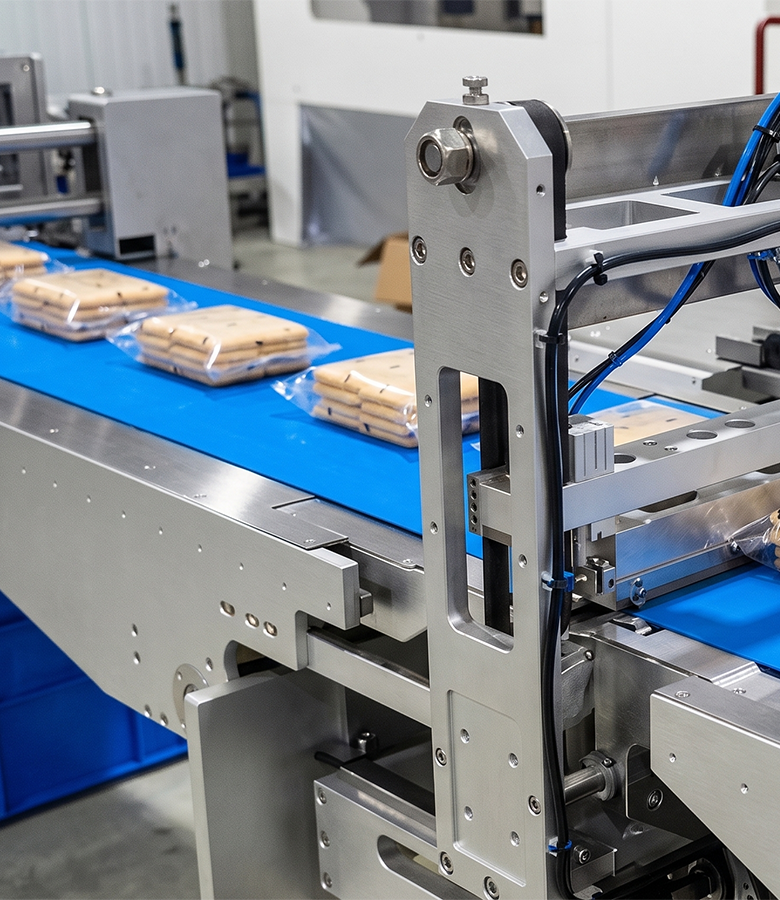

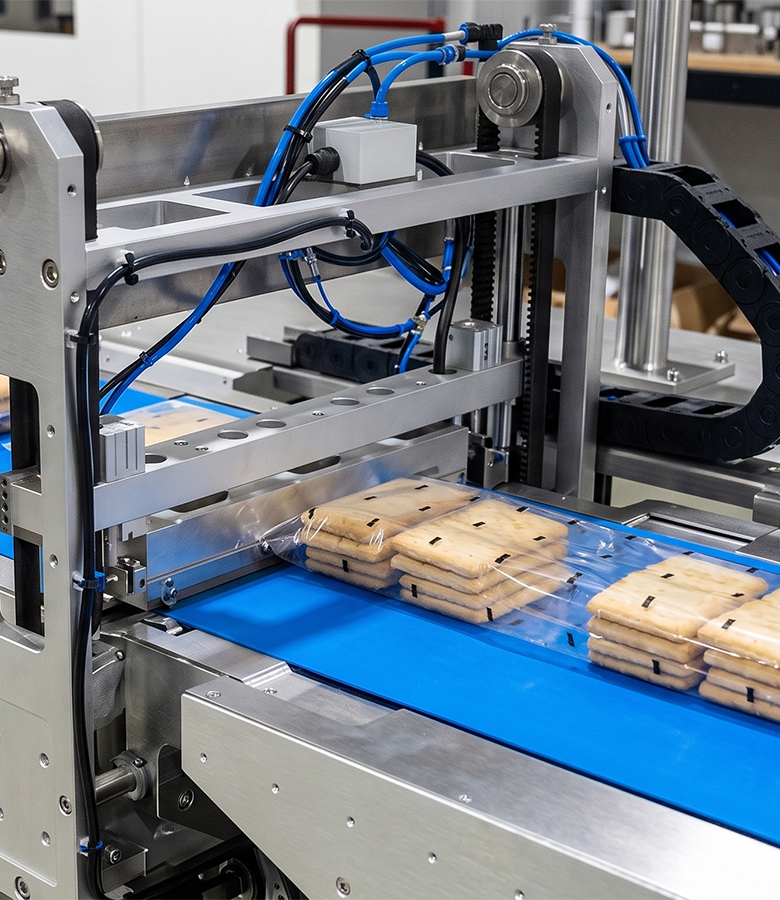

Box Motion Sealing Technology
The sealing jaw travels with the product during the sealing process eliminating product distortion, compression, or displacement during sealing, critical for irregular, bulky, or sticky products.
Five Servo Motor Drive System
Five independent servo motors control all key motion axes — delivering precise, synchronized operation and consistent packaging quality across the full product size and speed range.

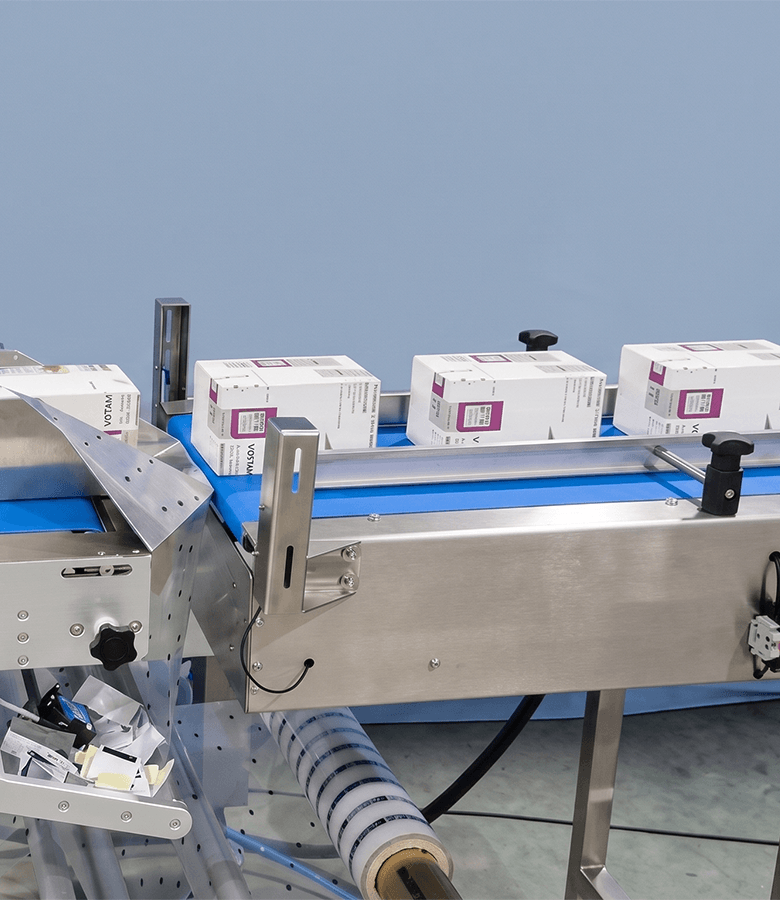

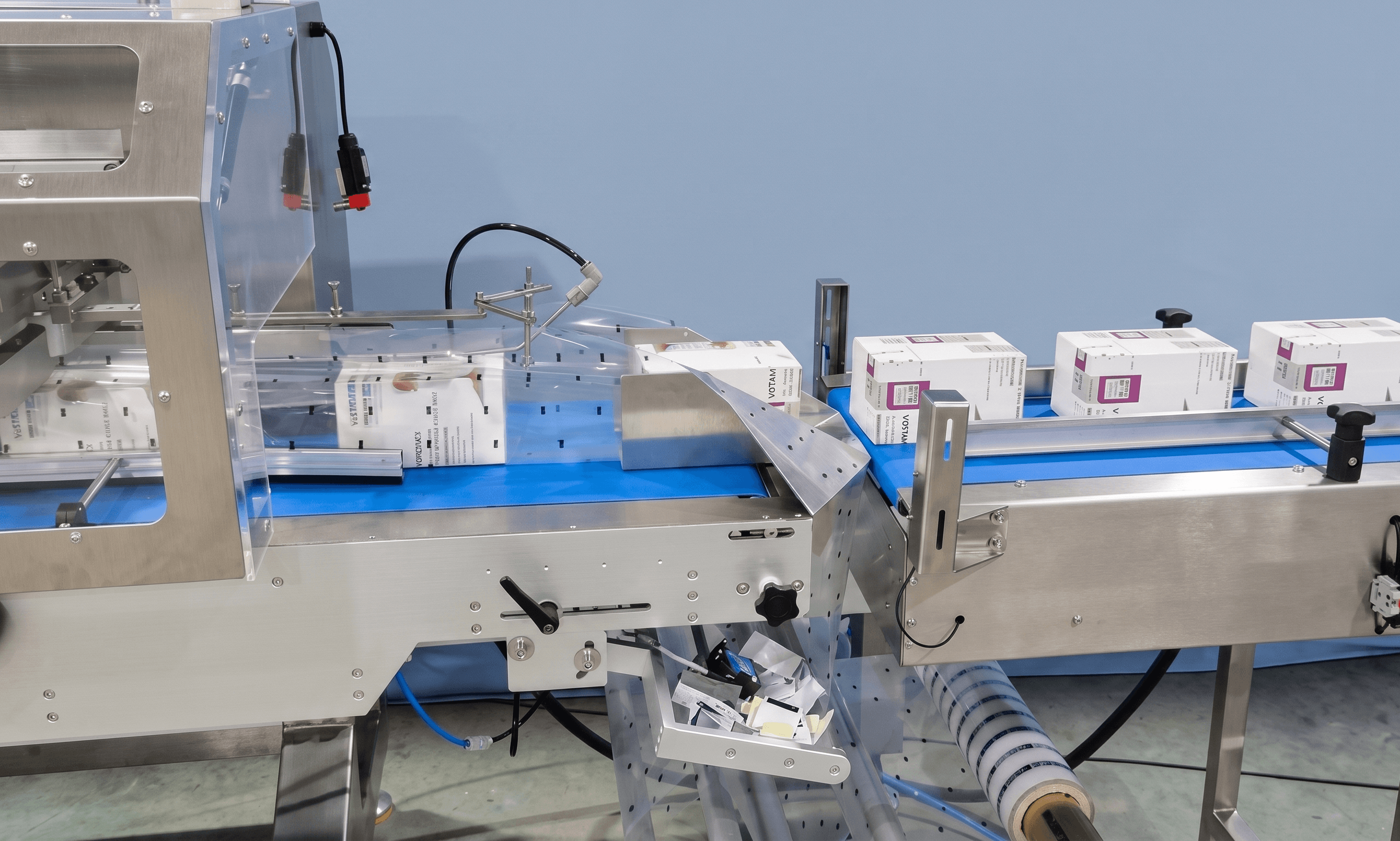

Stainless Steel Infeed with Inline
Feeding 2000mm infeed conveyor with stainless steel pushers and inline automatic feeding system — ensuring smooth, consistent product spacing and feeding for irregular or loosely structured products.
Longitudinal Sealing with Pre-Heating Bars
Three sets of longitudinal sealing wheels with pneumatic opening and pre-heating bars — ensuring consistent, reliable fin seals even on challenging films and product shapes.

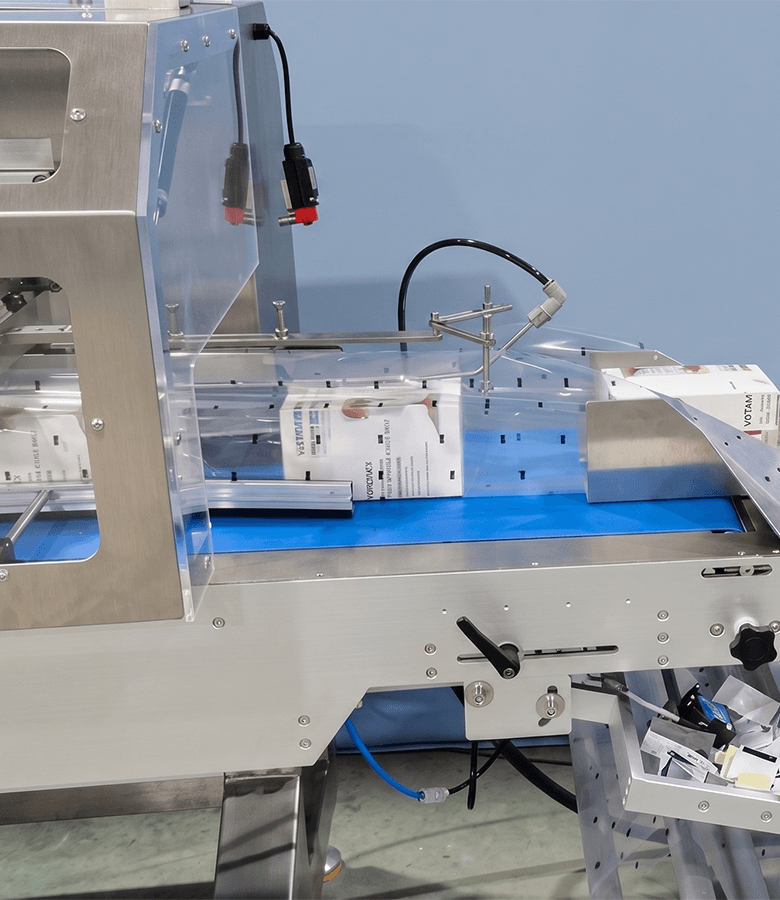

Adjustable Forming Box
Fully adjustable forming box with five servo motors accommodates a wide range of product sizes — enabling quick format changeovers without specialist tools.
Discharge Conveyor
Included 1000mm discharge conveyor belt with AC motor included as standard — providing smooth, controlled product outfeed and seamless integration with downstream packaging lines.
Industries & Products
Suitable Appplications
Engineered for a wide range of liquid and semi-liquid products across food, beverage and industrial packaging.
Technical Data
Full Specification
Every detail engineered for precision and consistent production output.

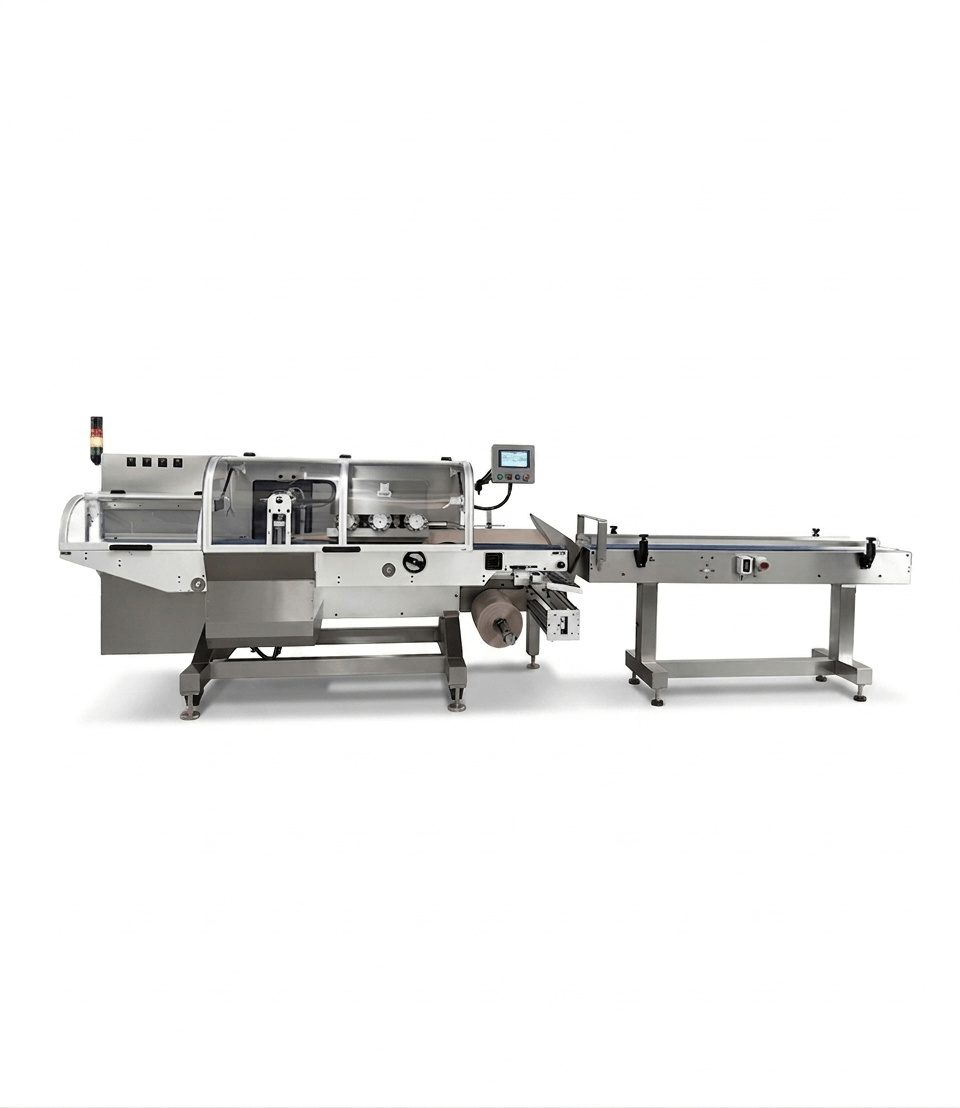

| Parameter | AHP-700BM-S4 | AHP-700BBM-S5 |
| Film Feed | Top film | Bottom film |
| Bag Length | 100 to 600mm | 100 to 600mm |
| Bag Width | 100 to 320mm | 100 to 320mm |
| Wrapping Speed | 60 pcs/min | 60 pcs/min |
| Max. Film Width | 700mm | 700mm |
| Power | 6.5 KW | 6.5 KW |
| Voltage | 220V / 380V | 220V / 380V |
| Servo Motors | 5 | 5 |
| Infeed Conveyor | 2000mm stainless steel | 2000mm stainless steel |
| Discharge Conveyor | 1000mm with AC motor | 1000mm with AC motor |
