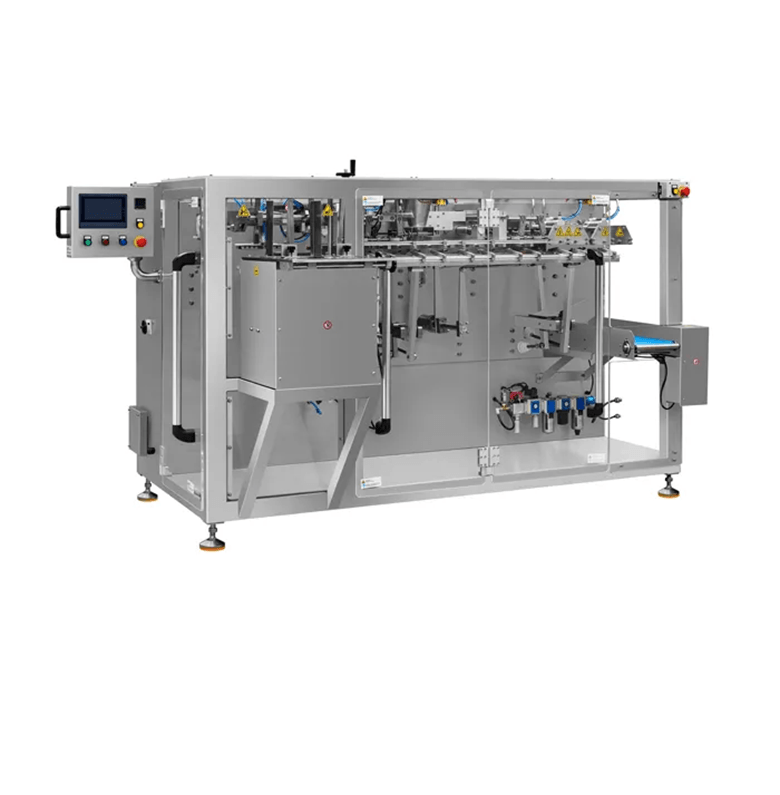

APHPM-210 Automatic Horizontal Fill Seal Machine for Pre-Made Pouch
APHPM-210 Automatic Horizontal Premade Pouch Fill Seal Machine is a new type of horizontal packaging machine with a small body and simple structure. It has the characteristics of easy operation, high production efficiency and wide application range. It is mainly suitable for full-automatic packaging of self-supporting bags, flat bags, zipper bags and special-shaped bags. The product has high sealing strength, strong reliability and smooth and beautiful appearance. It is an ideal packaging machine for food, medicine, cosmetics and fine chemicals.
25-55
pcs/min
380V
Voltage
3
kW Power
100L/min
Air Consumption
Engineering Advantages
Built for Demanding Production Lines
Precision Machined SUS304 Construction
All parts manufactured using precision machine tools with heat-treated transmission components — delivering greater durability and long-term reliability in demanding production environments.
Advanced PLC + 7" Colour Touchscreen
Advanced PLC control with 7-inch colour touch screen enables easy parameter setting, real-time production display, packaging quantity count, and convenient machine capacity statistics.
Fault Self-Alarm & Auto-Stop Safety
Fault self-alarm, self-stop, and self-diagnosis functions ensure safe, simple operation — with each action independently controllable on the touchscreen for fast maintenance and format adjustment.
Vacuum Bag Opening System
Machine comes with an integrated vacuum pump using a vacuum bag opening method — ensuring consistent, reliable bag opening across all pouch formats at all production speeds.
No Bag No Fill Safety
Automatic detection stops filling and sealing when no bag is present — preventing product waste and protecting the machine during production interruptions.
Wide Metering & Conveyor Compatibility
Compatible with various metering mechanisms and hoppers for different product types — and can be fitted with horizontal belt conveyor or climbing conveyor depending on line layout.
Industries & Products
Suitable Appplications
Engineered for a wide range of liquid and semi-liquid products across food, beverage and industrial packaging.
Technical Data
Full Specification
From empty bag to sealed, capped product every step fully automated in one continuous rotary flow.
| Model No. | APHPM-210 |
| Pouch Size (Height) | 150–350mm |
| Pouch Size (Width) | 100–210mm |
| Speed | 25–55 pcs/min |
| Voltage | 380V / 3 Phase, 50/60Hz |
| Power | 3 kW |
| Air Consumption | 100 L/min |
| Overall Dimension | L2710 × W1741 × H1500mm |
