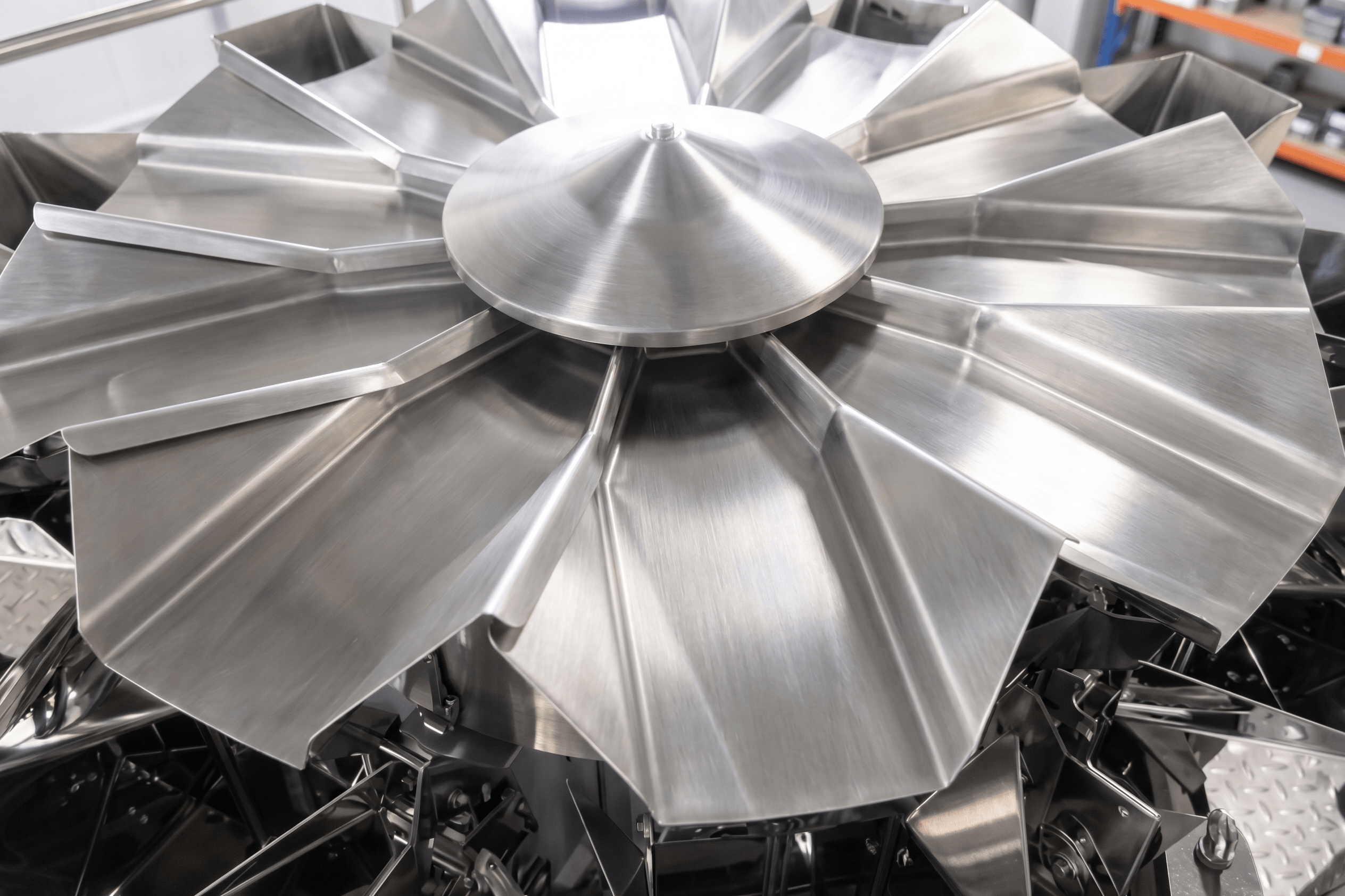

Multi head weigher- linear head weigher

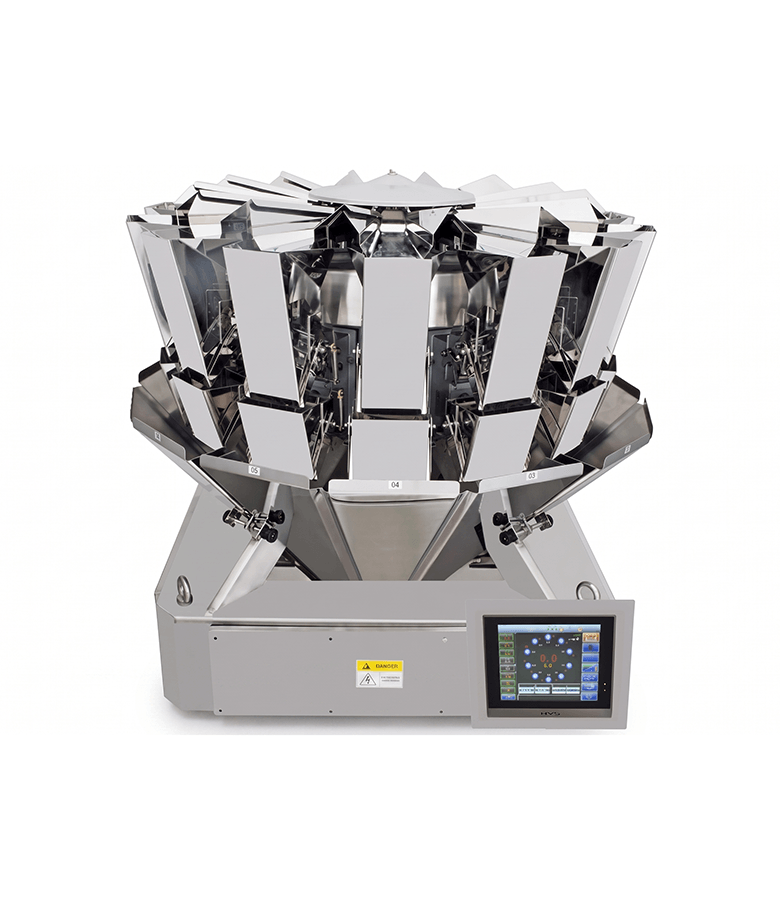

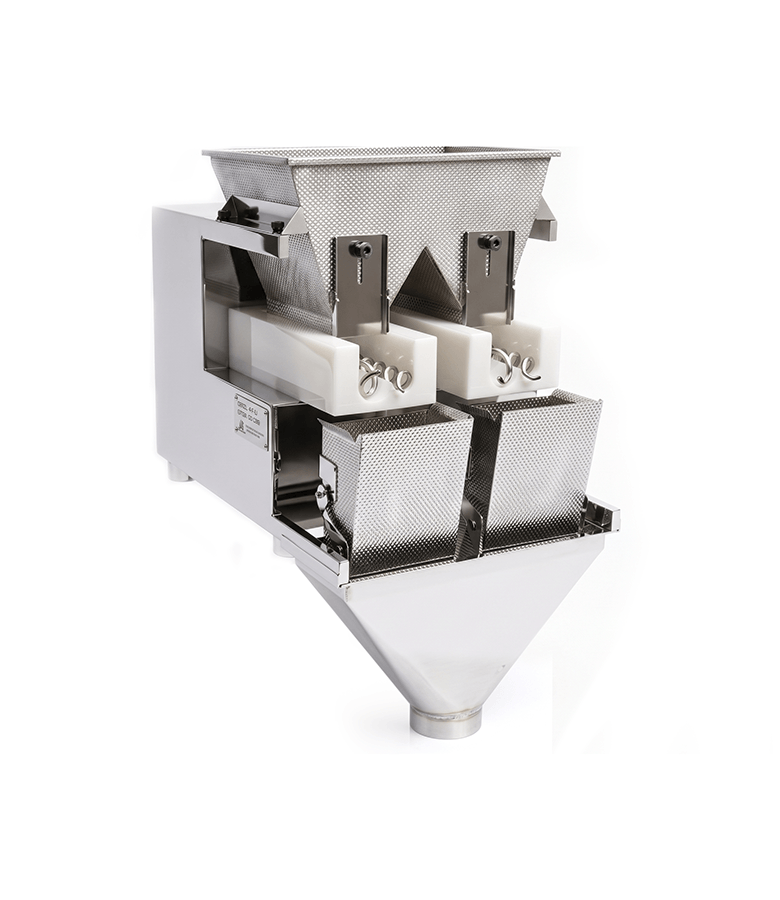

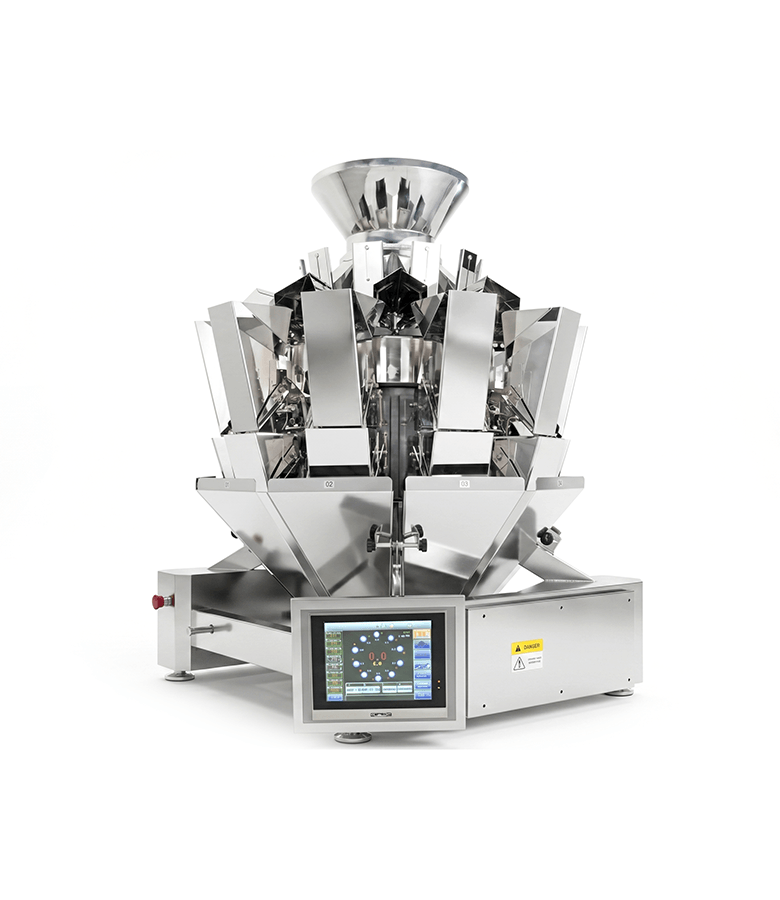

The Multi Head Weigher range is a fully automatic computerised combination weighing system designed for high speed, high accuracy weighing of granular products on packaging lines. Using factorial combination theory, the machine calculates all possible weight combinations from its weigh buckets and selects the one closest to the target weight — achieving consistent, precise fills at high production speeds. Available in AC Series and M Series multihead models as well as a 2 Head Screw Linear Weigher for simpler applications. Compatible with VFFS, premade pouch, and other packaging machines via signal communication.
Up to140
bags/min
X(0.5) Grade
Weighing Accuracy
25 – 500g
Weighing Range
10 or 24 heads
Bucket Configuration
Engineering Advantages
Built for Demanding Production Lines
Factorial Combination Theory
The CPU calculates weight values from each weigh bucket simultaneously and selects the combination closest to the target weight from all qualified options — achieving consistently accurate fills at every cycle.
Inovance Control System
Stable Inovance PLC control delivers reliable, consistent performance — with intuitive interface for parameter adjustment and real-time production monitoring.
Mechanical Transmission Drive
Main moving parts use mechanical transmission — providing controllable, stable, and flexible motion at all operating speeds with low failure rate.
Sinking Filling Mechanism
The filling nozzle sinks into the pouch before dispensing — preventing product overflow and ensuring clean, consistent fills on every cycle.
Intelligent Bag Detection
No bag or poor bag opening automatically stops filling and sealing — preventing product waste and protecting the machine during production interruptions.
GMP-Compliant SS304 Construction
Full machine constructed from SUS304 stainless steel meeting GMP hygiene standards — suitable for food, pharmaceutical, and cosmetic production.
Technical Data
Full Specification
Every detail engineered for precision and consistent production output.
| Parameter | AC-6B14 | AC-6B10 |
| Bucket Number | 24 | 10 |
| Weighing Range | 25 – 500g | 25 – 500g |
| Accuracy | X(0.5) Grade | X(0.5) Grade |
| Max. Speed | 140 bags/min | 80 bags/min |
| Input Power | 2.0 KW | 1.5 KW |
| Rated Voltage | AC 220V | AC 220V |
| Rated Frequency | 50/60 Hz | 50/60 Hz |
| Pro Memory | 0 – 99 | 0 – 99 |
| Machine Weight | 420 kg | 250 kg |
| Overall Dimensions | 1,600×1,210×1,484mm | 1,436×1,086×1,388mm |
