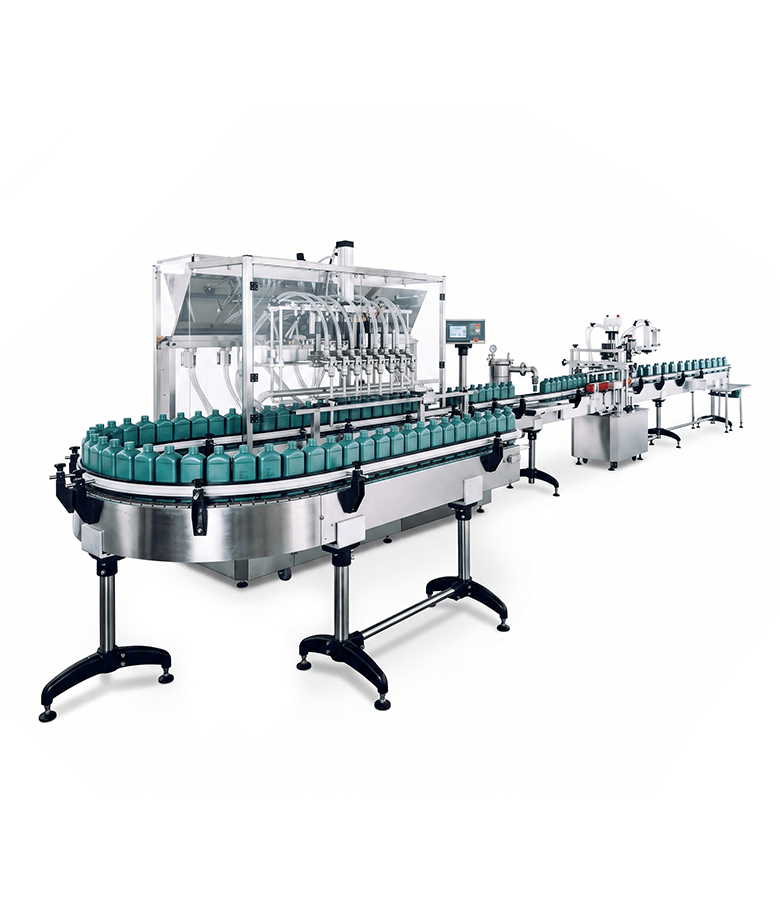

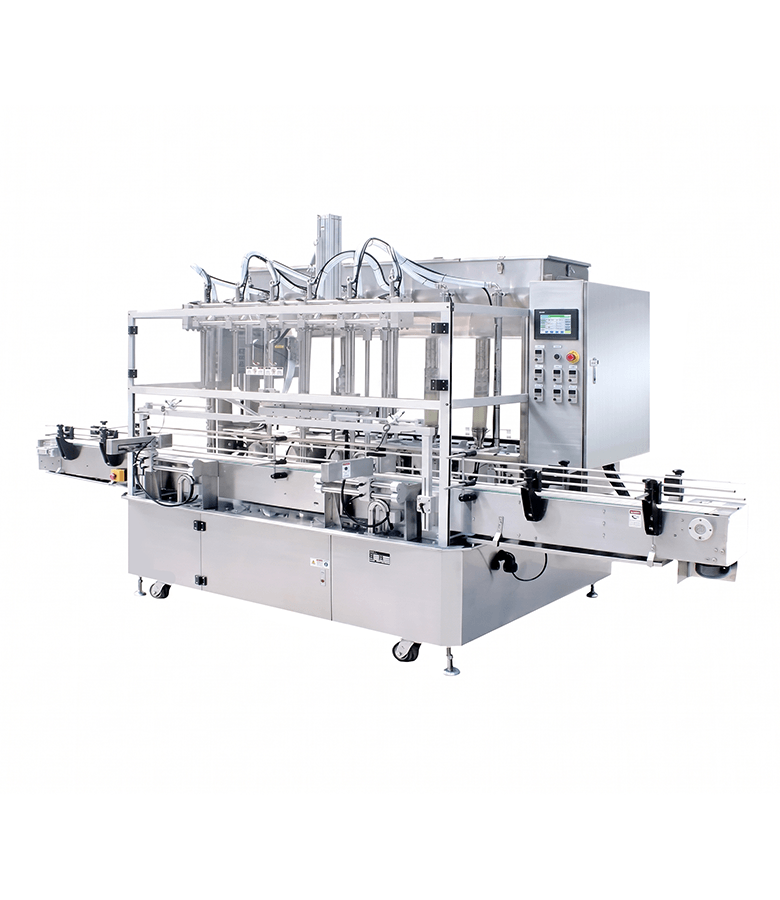

Automatic Rotary Lobe Pump Filling Machine
The APFM-840/860/880 is a fully automatic rotary lobe pump filling machine engineered for precise and efficient filling of products ranging from water-thin liquids to high-viscosity pastes. Particularly effective for viscous, foaming, and shear-sensitive products, the lobe pump technology ensures gentle yet accurate filling without product degradation.
30–60
bottles/min
4 / 6 / 8 nozzles
Filling Nozzle Options
100ml – 5,000ml
Filling Range
SS304 / SS316
Food-Grade Construction
Engineering Advantages
Built for Demanding Production Lines
Rotary Lobe Pump Technology
Each nozzle is driven by an individual motor-powered rotary pump delivering high-accuracy filling for viscous, foaming, and shear sensitive products without damaging product integrity.
SS304 Stainless Steel Construction
Full machine frame built in SS304 stainless steel ensuring hygiene compliance and durability for food, pharmaceutical, and chemical production environments.
Independent Volume Adjustment Per Nozzle
PLC combined with touch screen allows filling volume to be easily adjusted separately for each nozzle giving precise individual control across all filling heads simultaneously.
Diving Fill System
No Spillage The diving type filling system lowers the nozzle into the container before filling and rises as it fills — preventing spillage, foaming, and product waste on every cycle.
No Bottle No Fill Safety Device
Built-in sensor automatically detects missing containers and halts filling eliminating product waste and keeping the production line clean and efficient at all times.
20 Job Memory
Stores up to 20 product recipes for instant recall enabling fast and effortless changeover between different products and filling volumes without manual re-entry of parameters.
Industries & Products
Suitable Appplications
Engineered for a wide range of liquid and semi-liquid products across food, beverage and industrial packaging.
Technical Data
Full Specification
Every detail engineered for precision and consistent production output.
| Parameter | APFM-840 | APFM-860 | APFM-880 |
| Filling Nozzles | 4 | 6 | 8 |
| Max. Filling Capacity | 24 bottles/min | 36 bottles/min | 48 bottles/min |
| Filling Range (A) | 30–500ml | 30–500ml | 30–500ml |
| Filling Range (B) | 100–1,000ml | 100–1,000ml | 100–1,000ml |
| Filling Range (C) | 500–5,000ml | 500–5,000ml | 500–5,000ml |
| Filling Pump | Stainless Steel Rotary Lobe Pump | ||
| Power | 200V / 1Ph / 50–60Hz | ||
